Zys 4mm Diameter Ceramic Bearing Ball Silicon Nitride Ceramic Ball with Grade 5

Product Description

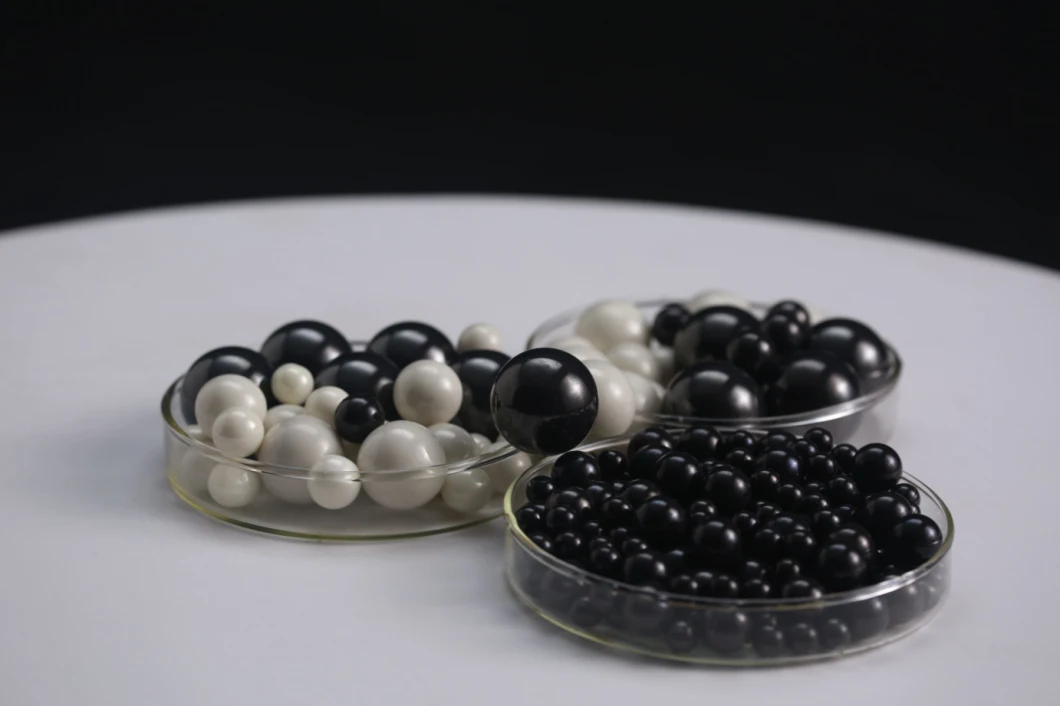

ZYS 4mm diameter Ceramic bearing ball Silicon Nitride ceramic ball with Grade 5Zys 4mm Diameter Ceramic Bearing Ball Silicon Nitride Ceramic Ball with Grade 5
Si3N4 is a new kind of bearing material with several good features, it possesses high temperature resistance, corrosion resistance, insulation, non-magnetism, high strength, low density and other features. In the application of bearing, it possesses low friction, low temperature rise, high rigidity, low centrifugal force and other features. It can implement high speed, high precision, high temperature, high rigidity, corrosion resistance and other good features.
The high precision and high performance silicon nitride bearing ball is manufactured by  spray-drying process, near-net-shape, cold isotatic pressing, GPS-HIP combined sintering, compounded abrasive lapping process effectively. The precision grade of it is G5, the materials class is I.

ZYS Si3N4 ceramic ball material grades
                       Class
Item
Materials class
IIIIII
PropertyBending strengthσ3.40(Mpa)900800600
Crushing load ratio(%)353530
Hardness(HV10)158014801380
Fracture toughness(Mpa.m1/2)6.05.05.0
The limit does of fiber structurePore size(μm)101025
Porosity(%)0.020.060.06
Crystal phase(μm)101025
The second ceramic phase(μm)252525
The maximum of inclusion of transverse section every
Square centimeter
Range 200(μm)001
Range 100~200(μm)012
Range 50~100(μm)124
Range 20~50(μm)4816

Examples of Si3N4 ceramic ball's common applications
 G3G5G10 G16G20 G28 G40
Class IHigh speed power equipment
Space mechanism
Aircraft instrument
Liquid oxygen pump
Active shaft bearing
The key parts of aerospace equipment
Class IIMolecular turbo-pump
High precision star bearing
Vacuum equipment, high speed instrument, mechanical devices, high performance and the most advanced contacting spherical propellerMotor, medium-low precision star bearingTesting bearing ball, separating bearing ball
Class III  Sport, entertainment, food processingMechanical devices

ZYS Si3N4 ceramic ball specifications
The nominal diameter of bearing ballThe nominal diameter of bearing ballThe nominal diameter of bearing ball
mminmminmmin
 1/325 8.73111/32
0.8 5.5 9.5253/8
1 5.5567/3211.1127/16
1.5881/165.95315/6412.30331/64
2 6 12.71/2
2.3813/326.351/413.49417/32
2.5 6.5 14.2889/16
3 6.74717/6415.08119/32
3.9695/327 15.8755/8
4 7.1449/3219.053/4
4.5 7.5 25.41
4.7623/167.9385/1631.751 1/4
Note:  The special specification can be manufactured after negotiating

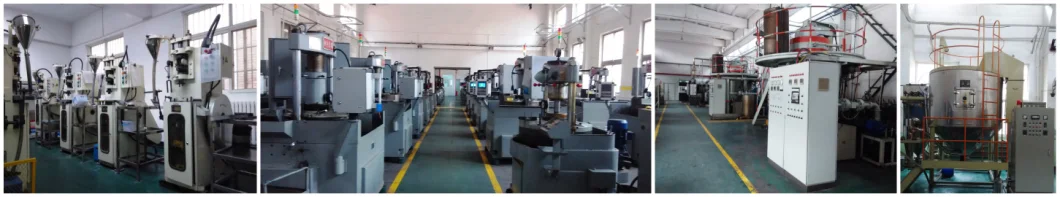

ZYS Ceramic ball workshop:
Zys 4mm Diameter Ceramic Bearing Ball Silicon Nitride Ceramic Ball with Grade 5


 ZYS Glory   Top 200 most promising companies of China in ForbesTop 500 in China Machinery IndustryExcellent Enterprise with China Well-know TrademarkHigh-performance Bearings LaboratoryState Quality Supervision and Testing Center for BearingISO/TC4 China SecretariatThe Research Center for High-speed Precision Bearing Engineering in Machinery Industry
 ZYS Quality assurance
Zys 4mm Diameter Ceramic Bearing Ball Silicon Nitride Ceramic Ball with Grade 5

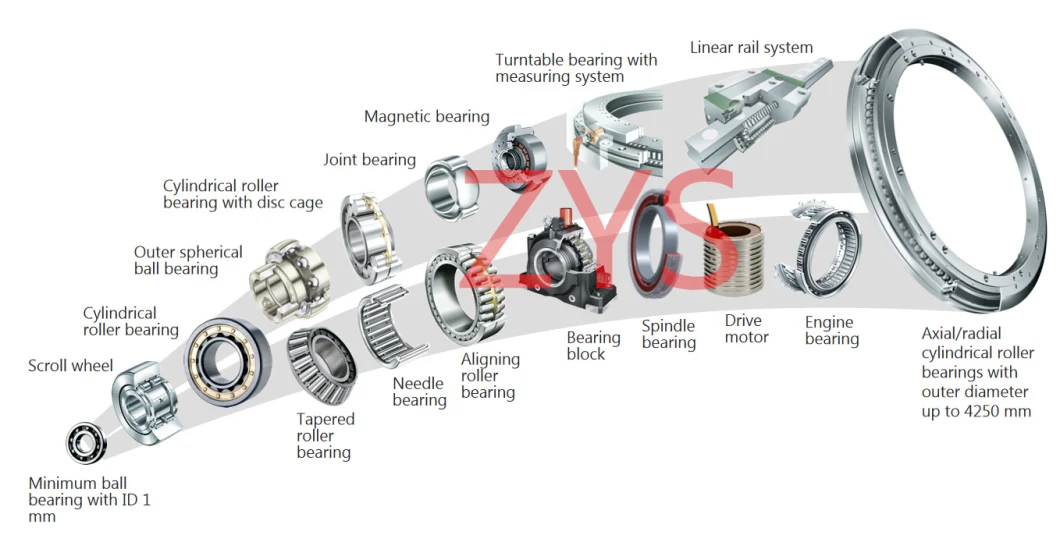

ZYS bearing products
Zys 4mm Diameter Ceramic Bearing Ball Silicon Nitride Ceramic Ball with Grade 5
